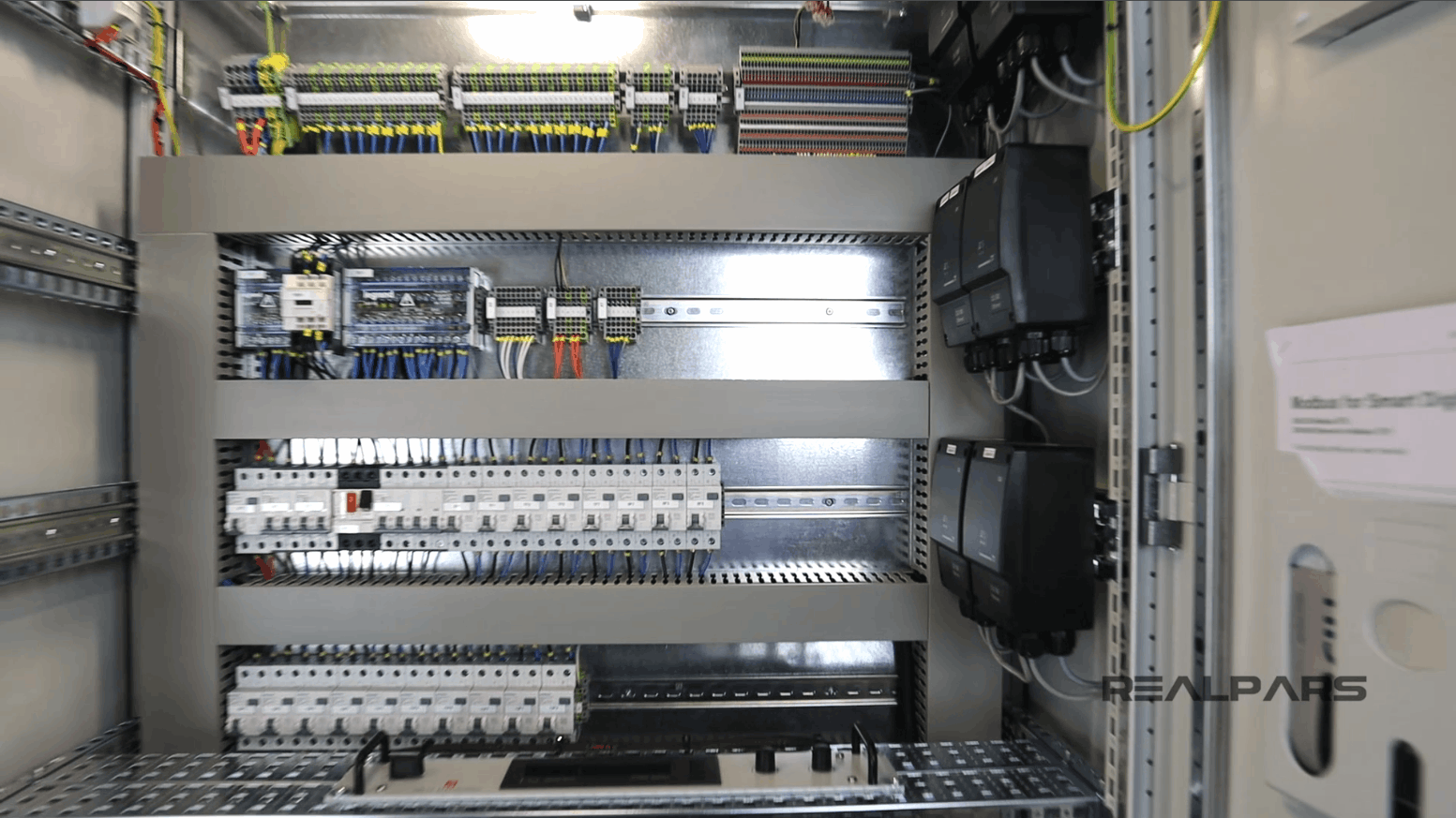

Electrical Panel Building

You must have heard or read about these terms

EMC: The electromagnetic compatibility (EMC) of a panel represents its capability for operating in a disturbed environment while limiting its own disturbing emissions.

Filters: Some devices generate disturbance on their upstream or downstream circuits: variable speed drives, frequency converters, switch mode power supplies, etc. The most appropriate treatment is to arrange a filter on the disturbed line, as close as possible to the polluting device.

Use shielded cables: Analogue sensor signals and data flows are sensitive to interference. Shielded cables are used to convey them. These cables are also used to execute variable speed drive/ motor links generating less interference.

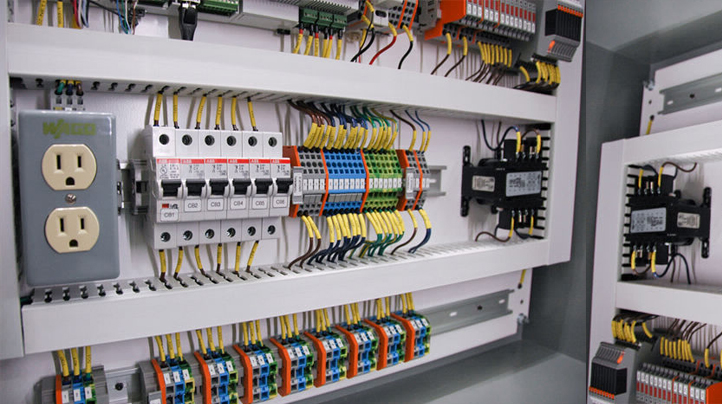

Importance of the panel layout:If high-power and low-power devices are juxtaposed without taking precautions and if cables of different kinds are routed in the same raceways, serious malfunctions are likely.

Send Service Request

As a standard professional panel builder, we take care of following things and many more
